OpenOCD & GDB Documentation

Overview

Complete guide for debugging ESP32 & STM32 using OpenOCD + GDB.

Downloads

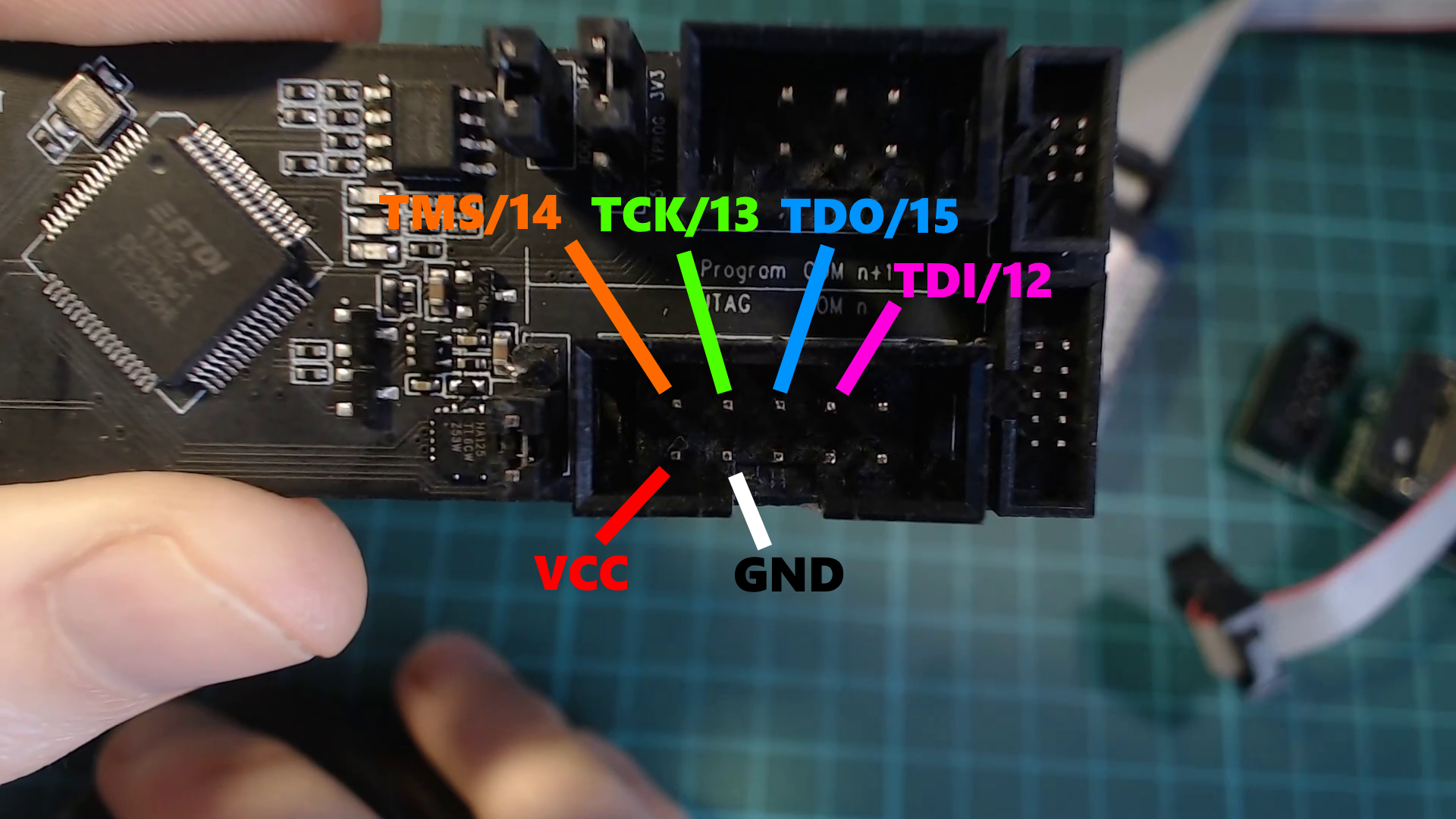

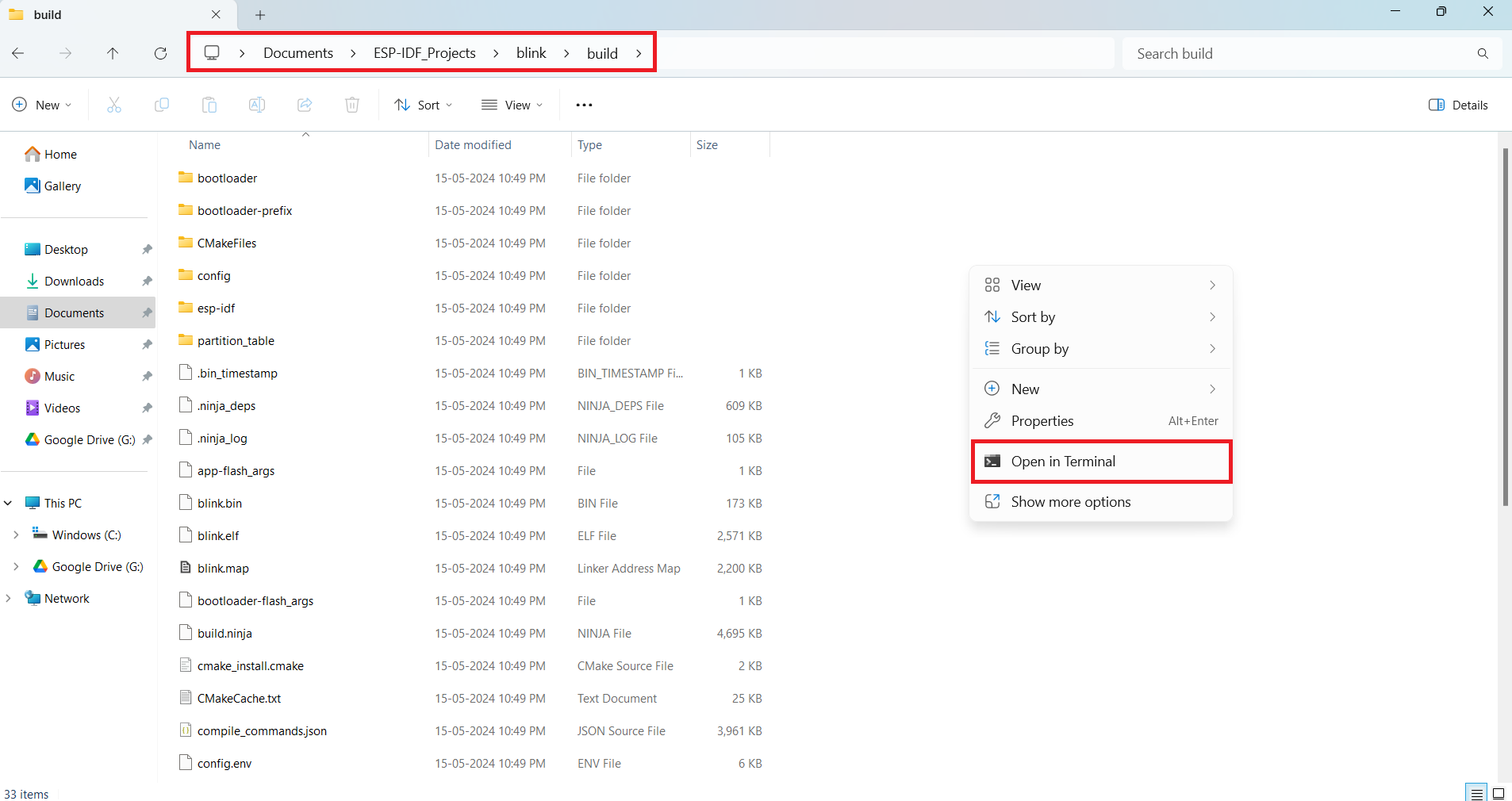

ESP32 Setup

Copy

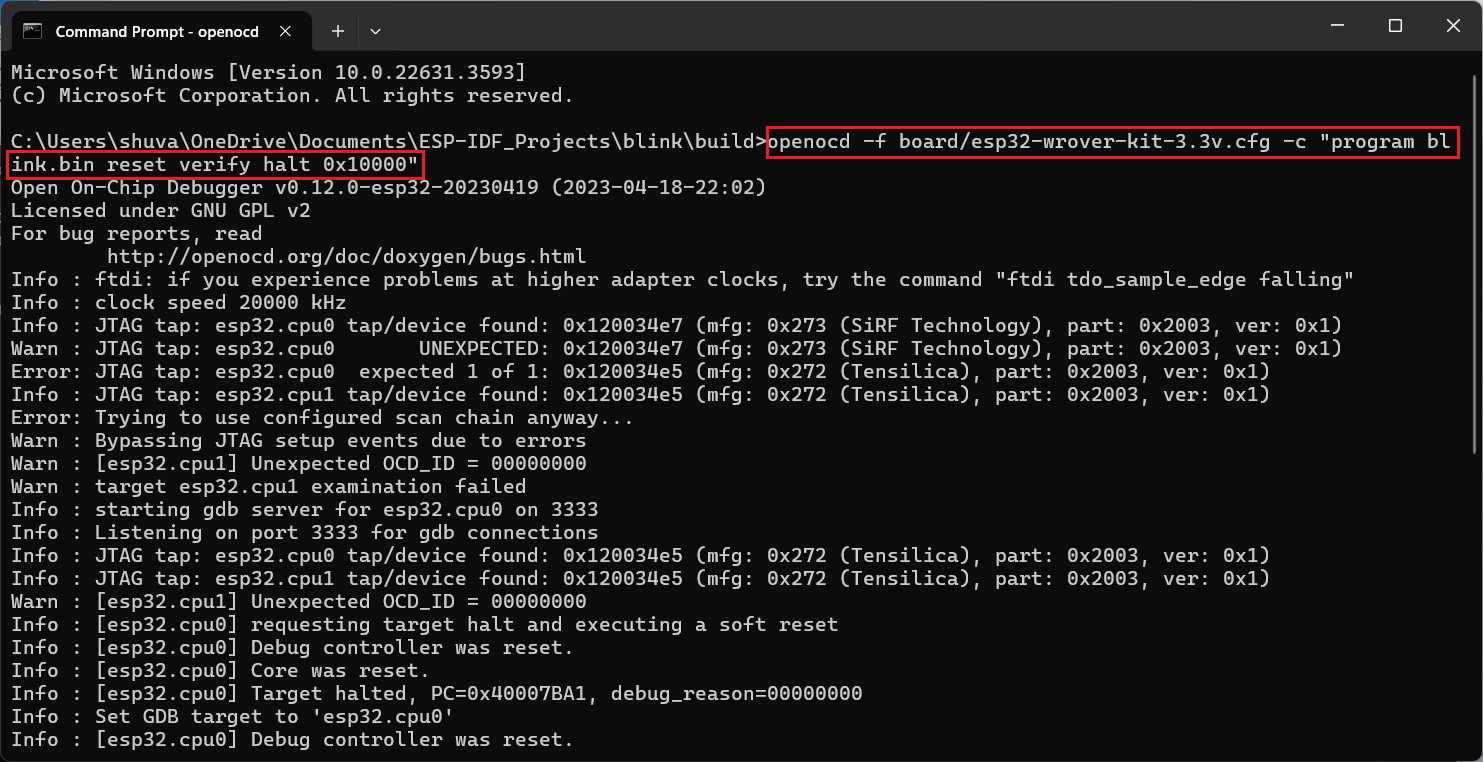

openocd -f board/esp32-wrover-kit-3.3v.cfg

STM32 Setup

Copy
openocd -f interface/stlink-v2.cfg -f target/stm32f1x.cfg

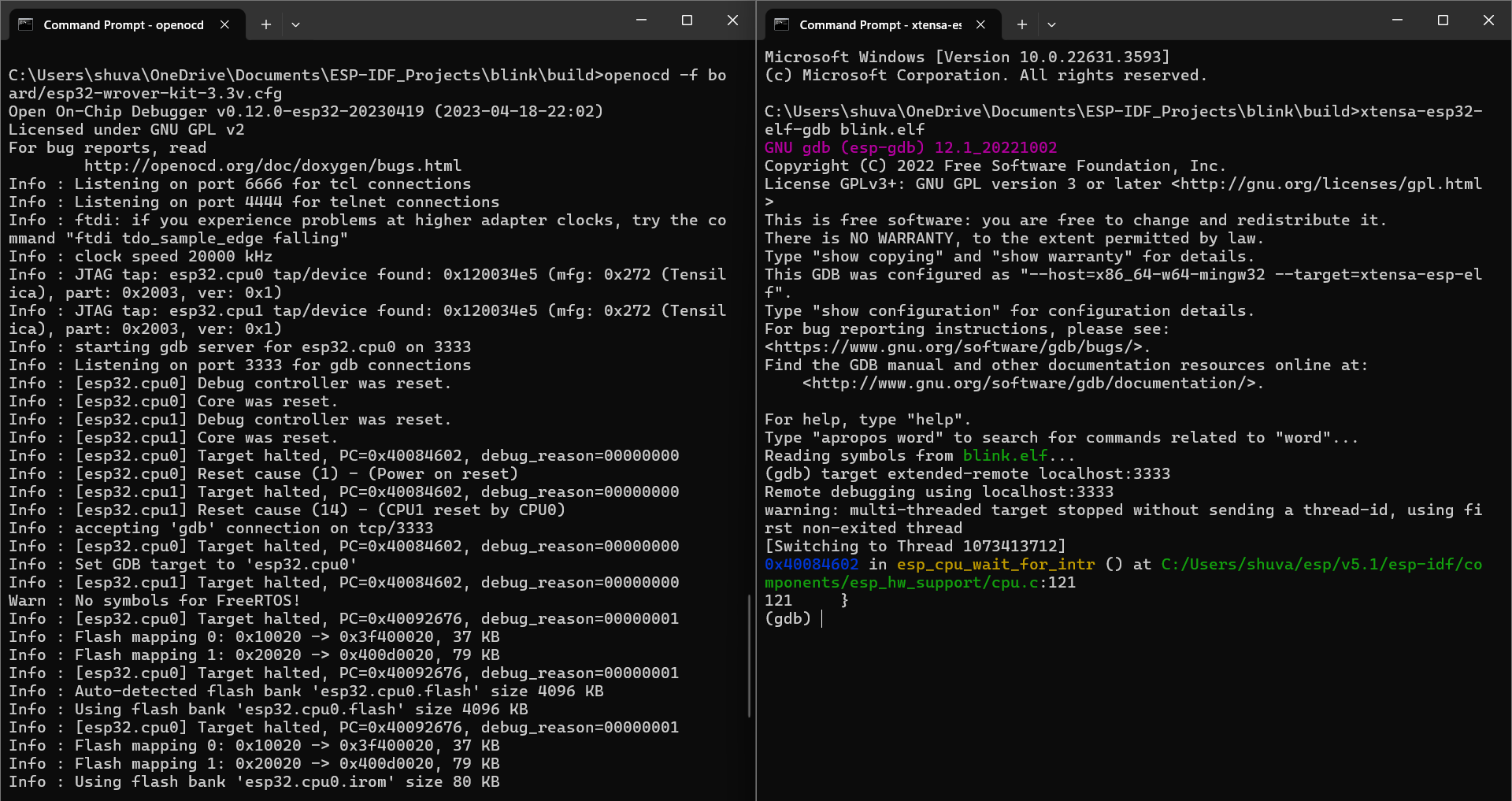

GDB Connection

Copy

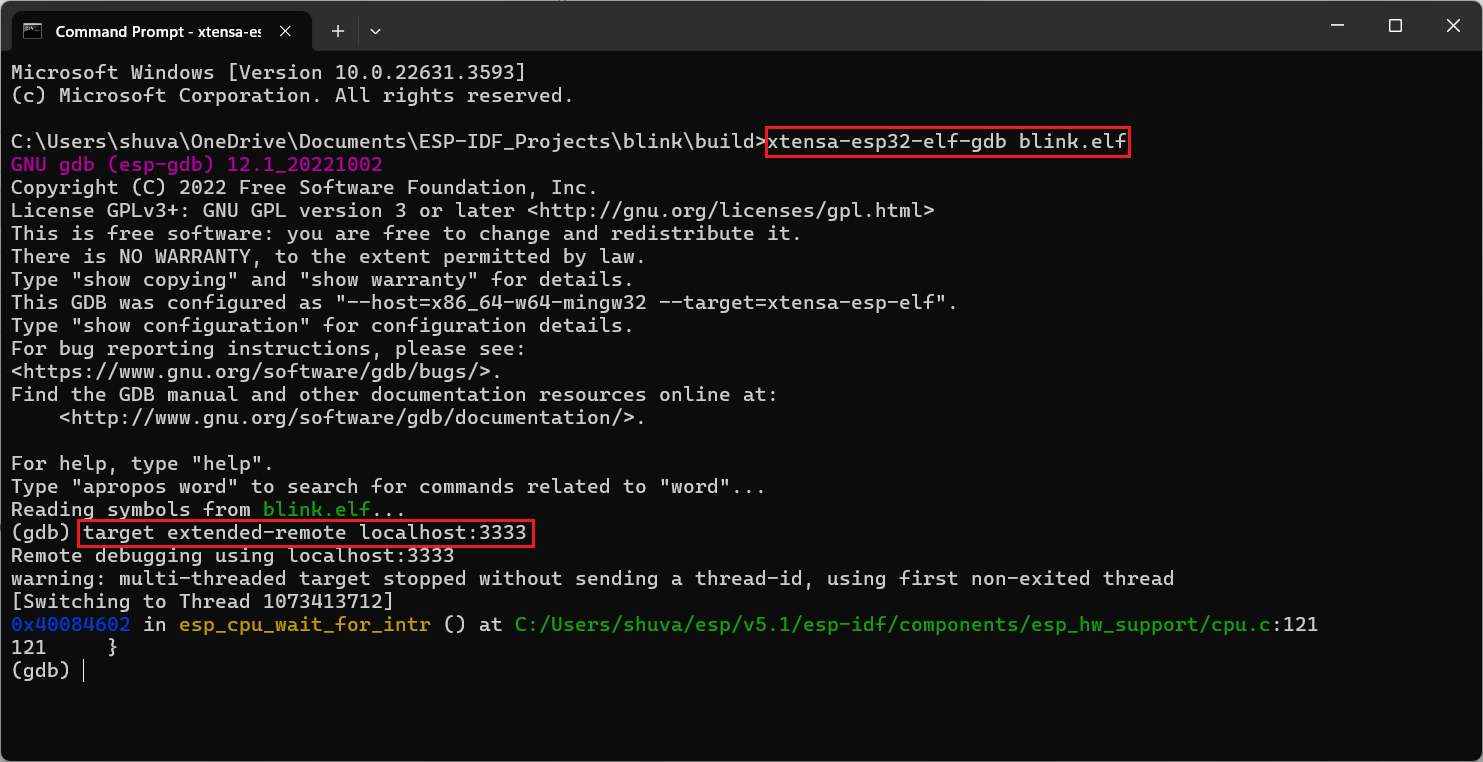

target remote localhost:3333

Telnet

Debug Steps

Commands

Copy


Reset & Flash
Copy
monitor reset init          # Reset the board
monitor reset halt          # Reset and halt execution
monitor flash erase_address 0x10000 0x2000
monitor flash write_image erase stm32_blink.ino.elf
monitor flash write_image blink.bin 0x10000
shell cls                   # Clear screen (Windows)



TUI Mode (ESP32 GDB)
Copy
tui enable / tui disable    # Toggle UI (Ctrl+X + A)

layout asm                  # Assembly view
layout reg                  # Register view
lay next / lay prev         # Switch tabs

Ctrl+X then 2               # Split screen
focus cmd                   # Focus command line
Ctrl+P                      # Previous commands



Breakpoints
Copy
b loop
b file.c:19
b stm32_blink.ino:8
d            # Delete all
d loop       # Delete specific



Execution Control
Copy
c        # Continue
s        # Step into
n        # Step over
fin      # Step out
where    # Show current execution point



Variables & Inspection
Copy
p var
info variables
info registers
info functions
info stack
info frame



Memory Inspection
Copy
x/10cb buf
x/16dw array
x/8xb 0x20000000
x/5i main



Watchpoints
Copy
watch x
rwatch x
awatch x

info watchpoints
delete 1
disable 1
enable 1



Memory Dump
Copy
dump memory file.bin 0x20000000 0x20000064
dump memory buf_dump.bin buf buf+10
dump i asm.txt main main+100
dump s str.txt buf
dump value val.txt var



Info Commands
Copy
info breakpoints
info watchpoints
info variables
info functions
info scope main
info registers
info threads
info stack
info sources
info files
info line
info address main
info symbol 0x8002136



Conditional Execution
Copy
if state == 1
  print "LED ON"
else
  print "LED OFF"
end


Copy
break loop if state == 1
break main.c:6 if i == 5



Source Listing
Copy
list
list main
list 25
list 30,40
list file.c:50

J-Link Debugging

Copy
JLinkGDBServerCL -device <DeviceName>
