UART Communication – Complete Professional Tutorial

Universal Asynchronous Receiver-Transmitter (UART) is one of the most widely used serial communication protocols in embedded systems. It enables data exchange between microcontrollers, computers, sensors, GPS modules, Bluetooth modules, modems, and many other peripherals using asynchronous serial communication.

📌 Introduction

UART is a simple, hardware-supported serial communication method widely used in embedded systems because it needs only two main signal lines and does not require a clock line.

🧠 Key Concepts

Two main signals:
- TX (Transmit)
- RX (Receive)
Asynchronous communication
Full-duplex communication
No clock line required
Configurable baud rate, parity, and stop bits

🌐 UART Communication Simulator

🔗 Open UART Simulator

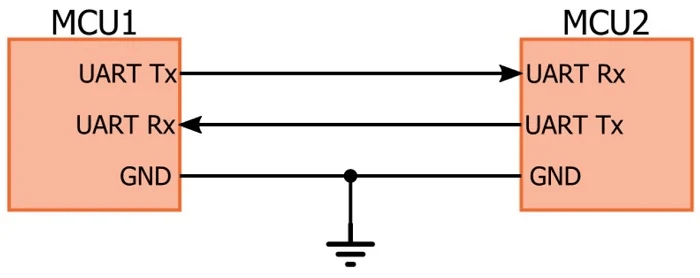

🔌 Basic UART Connection Diagram

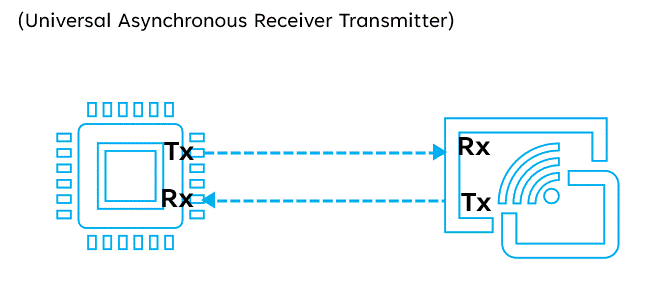

🎞️ UART Working Animation (GIF)

⚙️ How UART Works (Step-by-Step)

1. Idle State

TX and RX lines remain HIGH when no data is being transmitted

2. Start Bit

Transmission begins with one LOW start bit

3. Data Bits

Typically 8 data bits are sent
LSB (Least Significant Bit) is usually sent first

4. Optional Parity Bit

Used for simple error detection

5. Stop Bit(s)

One or more stop bits indicate the end of a frame
Line returns to HIGH state

📦 Data Format

| IDLE | START | DATA (5-9 bits) | PARITY (optional) | STOP (1/2 bits) |

🔢 Common UART Frame Formats

8N1

8 data bits
No parity
1 stop bit
Most common UART format

8E1

8 data bits
Even parity
1 stop bit

8O1

8 data bits
Odd parity
1 stop bit

7E1

7 data bits
Even parity
1 stop bit

📥 Baud Rate

Baud rate defines the transmission speed in bits per second.

Common Baud Rates

9600
19200
38400
57600
115200

Important Rule

Both transmitter and receiver must use the same baud rate, data bits, parity, and stop bits. Otherwise, communication errors will occur.

🔁 Read & Write Flow

📝 Write Operation

Configure UART peripheral
Set baud rate and frame format
Write byte or buffer into TX register
UART hardware serializes data
Data appears on TX pin

📖 Read Operation

Configure UART peripheral
Wait until RX data is available
Read received byte from RX register
Repeat until full buffer is received

🧩 ESP-IDF UART Examples

The examples below cover all common combinations:

UART initialization
single-byte transmit
single-byte receive
string transmit
buffer transmit
buffer receive
line-based receive
timeout-based receive
echo example
basic packet communication

ESP-IDF Setup

#include "driver/uart.h"
#include "driver/gpio.h"
#include "esp_err.h"
#include <string.h>

#define UART_PORT_NUM           UART_NUM_1
#define UART_TX_PIN             17
#define UART_RX_PIN             16
#define UART_BAUD_RATE          115200
#define UART_BUF_SIZE           1024
#define UART_TIMEOUT_MS         1000

static esp_err_t uart_master_init(void)
{
    const uart_config_t uart_config = {
        .baud_rate = UART_BAUD_RATE,
        .data_bits = UART_DATA_8_BITS,
        .parity    = UART_PARITY_DISABLE,
        .stop_bits = UART_STOP_BITS_1,
        .flow_ctrl = UART_HW_FLOWCTRL_DISABLE,
        .source_clk = UART_SCLK_DEFAULT,
    };

    ESP_ERROR_CHECK(uart_driver_install(UART_PORT_NUM, UART_BUF_SIZE, UART_BUF_SIZE, 0, NULL, 0));
    ESP_ERROR_CHECK(uart_param_config(UART_PORT_NUM, &uart_config));
    ESP_ERROR_CHECK(uart_set_pin(UART_PORT_NUM, UART_TX_PIN, UART_RX_PIN,
                                 UART_PIN_NO_CHANGE, UART_PIN_NO_CHANGE));

    return ESP_OK;
}

1) Write Single Byte

esp_err_t uart_write_byte(uint8_t data)
{
    int written = uart_write_bytes(UART_PORT_NUM, (const char *)&data, 1);
    return (written == 1) ? ESP_OK : ESP_FAIL;
}

2) Read Single Byte

esp_err_t uart_read_byte(uint8_t *data)
{
    if (data == NULL) return ESP_ERR_INVALID_ARG;

    int len = uart_read_bytes(UART_PORT_NUM, data, 1, pdMS_TO_TICKS(UART_TIMEOUT_MS));
    return (len == 1) ? ESP_OK : ESP_ERR_TIMEOUT;
}

3) Write String

esp_err_t uart_write_string(const char *str)
{
    if (str == NULL) return ESP_ERR_INVALID_ARG;

    int len = strlen(str);
    int written = uart_write_bytes(UART_PORT_NUM, str, len);
    return (written == len) ? ESP_OK : ESP_FAIL;
}

4) Read Buffer

esp_err_t uart_read_buffer(uint8_t *buf, size_t len, size_t *received_len)
{
    if (buf == NULL || len == 0) return ESP_ERR_INVALID_ARG;

    int rx_len = uart_read_bytes(UART_PORT_NUM, buf, len, pdMS_TO_TICKS(UART_TIMEOUT_MS));
    if (received_len) {
        *received_len = (rx_len > 0) ? (size_t)rx_len : 0;
    }

    return (rx_len > 0) ? ESP_OK : ESP_ERR_TIMEOUT;
}

5) Write Buffer

esp_err_t uart_write_buffer(const uint8_t *buf, size_t len)
{
    if (buf == NULL || len == 0) return ESP_ERR_INVALID_ARG;

    int written = uart_write_bytes(UART_PORT_NUM, (const char *)buf, len);
    return (written == (int)len) ? ESP_OK : ESP_FAIL;
}

6) Read Line Until Newline

esp_err_t uart_read_line(char *buf, size_t max_len)
{
    if (buf == NULL || max_len == 0) return ESP_ERR_INVALID_ARG;

    size_t index = 0;
    uint8_t ch;

    while (index < (max_len - 1)) {
        int len = uart_read_bytes(UART_PORT_NUM, &ch, 1, pdMS_TO_TICKS(UART_TIMEOUT_MS));
        if (len <= 0) {
            break;
        }

        buf[index++] = (char)ch;
        if (ch == '\n') {
            break;
        }
    }

    buf[index] = '\0';
    return (index > 0) ? ESP_OK : ESP_ERR_TIMEOUT;
}

7) UART Echo Example

esp_err_t uart_echo_task_once(void)
{
    uint8_t data[128];
    int len = uart_read_bytes(UART_PORT_NUM, data, sizeof(data), pdMS_TO_TICKS(UART_TIMEOUT_MS));
    if (len > 0) {
        int written = uart_write_bytes(UART_PORT_NUM, (const char *)data, len);
        return (written == len) ? ESP_OK : ESP_FAIL;
    }

    return ESP_ERR_TIMEOUT;
}

8) Send Packet with Header and Footer

esp_err_t uart_send_packet(const uint8_t *payload, size_t len)
{
    if (payload == NULL || len == 0) return ESP_ERR_INVALID_ARG;

    uint8_t header = 0xAA;
    uint8_t footer = 0x55;

    if (uart_write_bytes(UART_PORT_NUM, (const char *)&header, 1) != 1) return ESP_FAIL;
    if (uart_write_bytes(UART_PORT_NUM, (const char *)payload, len) != (int)len) return ESP_FAIL;
    if (uart_write_bytes(UART_PORT_NUM, (const char *)&footer, 1) != 1) return ESP_FAIL;

    return ESP_OK;
}

9) Receive Fixed-Length Packet

esp_err_t uart_receive_packet(uint8_t *buf, size_t len)
{
    if (buf == NULL || len == 0) return ESP_ERR_INVALID_ARG;

    int rx_len = uart_read_bytes(UART_PORT_NUM, buf, len, pdMS_TO_TICKS(UART_TIMEOUT_MS));
    return (rx_len == (int)len) ? ESP_OK : ESP_ERR_TIMEOUT;
}

10) Flush UART RX Buffer

esp_err_t uart_clear_rx_buffer(void)
{
    return uart_flush_input(UART_PORT_NUM);
}

ESP-IDF Example Usage

void app_main(void)
{
    ESP_ERROR_CHECK(uart_master_init());

    uint8_t rx_byte;
    uint8_t tx_buffer[] = {0x11, 0x22, 0x33, 0x44};
    char line[64];

    uart_write_byte(0x55);
    uart_read_byte(&rx_byte);

    uart_write_string("Hello UART\r\n");
    uart_write_buffer(tx_buffer, sizeof(tx_buffer));

    uart_read_line(line, sizeof(line));
}

🧩 STM32 HAL Examples

STM32 HAL provides simple and efficient APIs for UART transmit and receive operations.

STM32 Setup Assumption

#include "stm32f1xx_hal.h"

extern UART_HandleTypeDef huart1;

1) Transmit Single Byte

HAL_StatusTypeDef stm32_uart_write_byte(uint8_t data)
{
    return HAL_UART_Transmit(&huart1, &data, 1, 100);
}

2) Receive Single Byte

HAL_StatusTypeDef stm32_uart_read_byte(uint8_t *data)
{
    return HAL_UART_Receive(&huart1, data, 1, 100);
}

3) Transmit String

HAL_StatusTypeDef stm32_uart_write_string(const char *str)
{
    if (str == NULL) return HAL_ERROR;

    return HAL_UART_Transmit(&huart1, (uint8_t *)str, strlen(str), 100);
}

4) Receive Buffer

HAL_StatusTypeDef stm32_uart_read_buffer(uint8_t *buf, uint16_t len)
{
    return HAL_UART_Receive(&huart1, buf, len, 100);
}

5) Transmit Buffer

HAL_StatusTypeDef stm32_uart_write_buffer(uint8_t *buf, uint16_t len)
{
    return HAL_UART_Transmit(&huart1, buf, len, 100);
}

6) Transmit with DMA

HAL_StatusTypeDef stm32_uart_write_dma(uint8_t *buf, uint16_t len)
{
    return HAL_UART_Transmit_DMA(&huart1, buf, len);
}

7) Receive with DMA

HAL_StatusTypeDef stm32_uart_read_dma(uint8_t *buf, uint16_t len)
{
    return HAL_UART_Receive_DMA(&huart1, buf, len);
}

8) Transmit with Interrupt

HAL_StatusTypeDef stm32_uart_write_it(uint8_t *buf, uint16_t len)
{
    return HAL_UART_Transmit_IT(&huart1, buf, len);
}

9) Receive with Interrupt

HAL_StatusTypeDef stm32_uart_read_it(uint8_t *buf, uint16_t len)
{
    return HAL_UART_Receive_IT(&huart1, buf, len);
}

10) Echo Example

void example_uart_echo(void)
{
    uint8_t ch;

    if (HAL_UART_Receive(&huart1, &ch, 1, 100) == HAL_OK) {
        HAL_UART_Transmit(&huart1, &ch, 1, 100);
    }
}

STM32 Example Usage

void example_uart_transactions(void)
{
    uint8_t rx_byte;
    uint8_t tx_data[] = {0x10, 0x20, 0x30, 0x40};

    stm32_uart_write_byte(0x55);
    stm32_uart_read_byte(&rx_byte);

    stm32_uart_write_string("Hello STM32 UART\r\n");
    stm32_uart_write_buffer(tx_data, sizeof(tx_data));

    stm32_uart_read_buffer(tx_data, 4);
}

⚡ Important Notes

UART is asynchronous, so no clock pin is required
TX of one device must connect to RX of the other
RX of one device must connect to TX of the other
Common ground is required between devices
Mismatched baud settings cause garbage data

🛠️ Troubleshooting

No data received → Check TX/RX cross connection
Garbage characters → Check baud rate mismatch
Framing error → Check stop bit and parity settings
Missing data → Check buffer size and timeout
Communication works one way only → Check wiring and TX/RX direction

🔬 How MCU Handles UART Data Internally

UART Transmission

When software writes data to UART:

MCU places byte into UART transmit register
UART hardware adds:
- start bit
- optional parity bit
- stop bit(s)
Then data is shifted out serially on TX pin

Example frame for sending 0x41 ('A') using 8N1:

IDLE = 1
START = 0
DATA = 10000010   (LSB first for 0x41)
STOP = 1

UART Reception

When data arrives on RX pin:

UART hardware detects start bit
Samples incoming bits according to configured baud rate
Reconstructs byte
Stores result into receive register
Software reads the received data

Start Bit

The start bit tells the receiver that a new frame is beginning.

LINE goes from HIGH to LOW

Stop Bit

Stop bit marks the end of frame and returns line to idle HIGH state.

LINE returns HIGH

Parity Bit

Parity is optional and used for basic error checking.

Even parity → total number of 1s is even
Odd parity → total number of 1s is odd

Important Rule

UART transfers raw bytes only. It does not understand:

integers
floats
strings
packets

Those formats must be handled by software protocol design.

Examples:

Sending "HELLO" means sending bytes one by one
Sending 0x1234 may require 2 bytes
Sending packets often requires header, payload, checksum, and footer

So always define:

baud rate
frame format
byte order
packet format
timeout behavior

📚 Summary

UART uses TX and RX lines
No clock signal required
Simple and widely supported
Ideal for debugging, modules, and point-to-point communication

🚀 Bonus: Logic Analyzer View

📌 Author Notes

This tutorial is designed for embedded engineers working with ESP32, STM32, and similar MCUs.
