SPI Communication – Complete Professional Tutorial

A professional embedded-systems tutorial page styled to match your I2C HTML design, using the SPI README content as the source.

📌 Introduction

Serial Peripheral Interface (SPI) is a synchronous serial communication protocol widely used for high-speed short-distance communication between microcontrollers and peripherals like displays, ADCs, DACs, sensors, Flash memories, RTCs, and RF modules.

Unlike I2C, SPI does not use device addresses on the bus. Instead, the master selects a slave using a dedicated CS / SS (Chip Select / Slave Select) line.

🧠 Key Concepts

Four-wire interface:
- SCLK (Serial Clock)
- MOSI (Master Out, Slave In)
- MISO (Master In, Slave Out)
- CS / SS (Chip Select / Slave Select)
Master-Slave architecture
Full-duplex communication
High-speed synchronous transfer
Clock polarity and phase configurable
Chip-select-based communication

🌐 SPI Communication Simulator Link

🔗 Open SPI Simulator

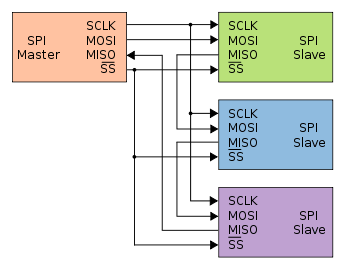

🔌 Basic SPI Connection Diagram

SPI Diagram

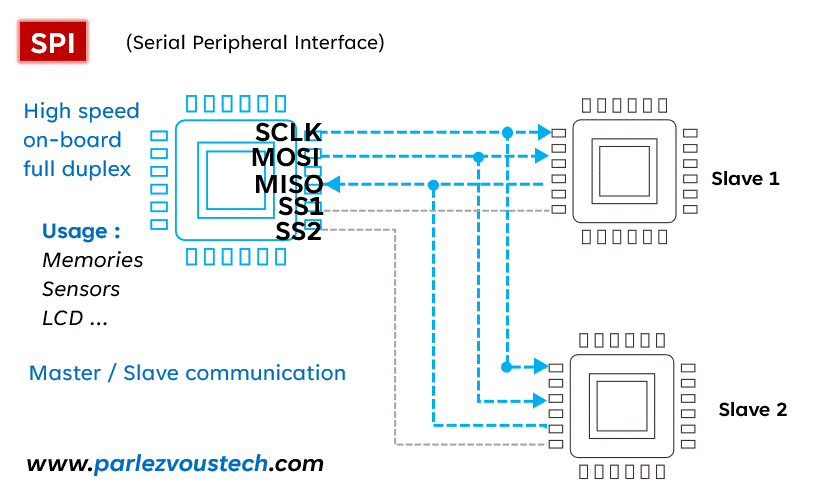

🎞️ SPI Working Animation (GIF)

SPI GIF

⚙️ How SPI Works (Step-by-Step)

1. Chip Select Assertion

Master pulls CS LOW to select a slave device

2. Clock Generation

Master generates SCLK
Slave uses this clock to shift data in and out

3. Simultaneous Data Transfer

Master transmits data on MOSI
Slave transmits data on MISO
Data transfer is usually full-duplex

4. Command / Address / Data Phase

Many SPI devices expect:
- command byte
- register or memory address
- optional dummy byte(s)
- data bytes

5. Chip Select Deassertion

Master releases CS HIGH
Transaction ends

📦 Data Format

| CS LOW | COMMAND | ADDRESS (optional) | DUMMY (optional) | DATA | CS HIGH |

Important: SPI frame format is device-specific. Some devices use only raw bytes, while others require command + address + dummy + data.

🔢 SPI Modes (CPOL and CPHA)

SPI supports 4 standard modes based on:

CPOL = Clock Polarity
CPHA = Clock Phase

Mode 0

CPOL = 0
CPHA = 0
Clock idle LOW
Data sampled on rising edge

Mode 1

CPOL = 0
CPHA = 1
Clock idle LOW
Data sampled on falling edge

Mode 2

CPOL = 1
CPHA = 0
Clock idle HIGH
Data sampled on falling edge

Mode 3

CPOL = 1
CPHA = 1
Clock idle HIGH
Data sampled on rising edge

🔢 8-bit vs 16-bit Register Addressing

Many SPI devices internally use registers or memory locations.

8-bit Register Addressing

Common in sensors and simple peripherals
One register byte sent after command

16-bit Register Addressing

Common in Flash memories, displays, and large memory devices
Two address bytes are sent:
- high byte first
- low byte second

📥 8-bit vs 16-bit Data

8-bit Data

One byte transferred

16-bit Data

Two bytes transferred
Usually MSB first unless the device datasheet says otherwise

🔁 Read & Write Flow

📝 Write Operation

Pull CS LOW
Send write command
Send register / memory address
Send data byte(s)
Pull CS HIGH

📖 Read Operation

Pull CS LOW
Send read command
Send register / memory address
Send dummy byte(s) if required
Read returned byte(s)
Pull CS HIGH

🧩 ESP-IDF SPI Examples

The examples below cover common SPI use cases:

command-only transfer
full-duplex single-byte transfer
8-bit register + 8-bit data
8-bit register + 16-bit data
16-bit register + 8-bit data
16-bit register + 16-bit data
single-byte read/write
multi-byte read/write

ESP-IDF Setup

#include "driver/spi_master.h"
#include "esp_err.h"
#include <string.h>

#define SPI_HOST_USED   SPI2_HOST
#define PIN_NUM_MOSI    23
#define PIN_NUM_MISO    19
#define PIN_NUM_CLK     18
#define PIN_NUM_CS      5

static spi_device_handle_t spi_dev;

static esp_err_t spi_master_init(void)
{
    spi_bus_config_t buscfg = {
        .mosi_io_num = PIN_NUM_MOSI,
        .miso_io_num = PIN_NUM_MISO,
        .sclk_io_num = PIN_NUM_CLK,
        .quadwp_io_num = -1,
        .quadhd_io_num = -1,
        .max_transfer_sz = 256,
    };

    spi_device_interface_config_t devcfg = {
        .clock_speed_hz = 1 * 1000 * 1000,
        .mode = 0,
        .spics_io_num = PIN_NUM_CS,
        .queue_size = 4,
    };

    ESP_ERROR_CHECK(spi_bus_initialize(SPI_HOST_USED, &buscfg, SPI_DMA_CH_AUTO));
    return spi_bus_add_device(SPI_HOST_USED, &devcfg, &spi_dev);
}

1) Write Command Only

esp_err_t spi_write_command(uint8_t cmd)
{
    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8;
    t.tx_buffer = &cmd;

    return spi_device_transmit(spi_dev, &t);
}

2) Full-Duplex Single-Byte Transfer

esp_err_t spi_transfer_byte(uint8_t tx_data, uint8_t *rx_data)
{
    if (rx_data == NULL) return ESP_ERR_INVALID_ARG;

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8;
    t.tx_buffer = &tx_data;
    t.rx_buffer = rx_data;

    return spi_device_transmit(spi_dev, &t);
}

3) Write 8-bit Data to 8-bit Register Address

esp_err_t spi_write_reg8_data8(uint8_t cmd, uint8_t reg_addr, uint8_t data)
{
    uint8_t tx[3] = { cmd, reg_addr, data };

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;

    return spi_device_transmit(spi_dev, &t);
}

4) Read 8-bit Data from 8-bit Register Address

esp_err_t spi_read_reg8_data8(uint8_t cmd, uint8_t reg_addr, uint8_t *data)
{
    if (data == NULL) return ESP_ERR_INVALID_ARG;

    uint8_t tx[3] = { cmd, reg_addr, 0x00 };
    uint8_t rx[3] = { 0 };

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;
    t.rx_buffer = rx;

    esp_err_t ret = spi_device_transmit(spi_dev, &t);
    if (ret == ESP_OK) {
        *data = rx[2];
    }
    return ret;
}

5) Write 16-bit Data to 8-bit Register Address

esp_err_t spi_write_reg8_data16(uint8_t cmd, uint8_t reg_addr, uint16_t data)
{
    uint8_t tx[4];
    tx[0] = cmd;
    tx[1] = reg_addr;
    tx[2] = (uint8_t)(data >> 8);
    tx[3] = (uint8_t)(data & 0xFF);

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;

    return spi_device_transmit(spi_dev, &t);
}

6) Read 16-bit Data from 8-bit Register Address

esp_err_t spi_read_reg8_data16(uint8_t cmd, uint8_t reg_addr, uint16_t *data)
{
    if (data == NULL) return ESP_ERR_INVALID_ARG;

    uint8_t tx[4] = { cmd, reg_addr, 0x00, 0x00 };
    uint8_t rx[4] = { 0 };

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;
    t.rx_buffer = rx;

    esp_err_t ret = spi_device_transmit(spi_dev, &t);
    if (ret == ESP_OK) {
        *data = ((uint16_t)rx[2] << 8) | rx[3];
    }
    return ret;
}

7) Write 8-bit Data to 16-bit Register Address

esp_err_t spi_write_reg16_data8(uint8_t cmd, uint16_t reg_addr, uint8_t data)
{
    uint8_t tx[4];
    tx[0] = cmd;
    tx[1] = (uint8_t)(reg_addr >> 8);
    tx[2] = (uint8_t)(reg_addr & 0xFF);
    tx[3] = data;

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;

    return spi_device_transmit(spi_dev, &t);
}

8) Read 8-bit Data from 16-bit Register Address

esp_err_t spi_read_reg16_data8(uint8_t cmd, uint16_t reg_addr, uint8_t *data)
{
    if (data == NULL) return ESP_ERR_INVALID_ARG;

    uint8_t tx[4] = {
        cmd,
        (uint8_t)(reg_addr >> 8),
        (uint8_t)(reg_addr & 0xFF),
        0x00
    };
    uint8_t rx[4] = { 0 };

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;
    t.rx_buffer = rx;

    esp_err_t ret = spi_device_transmit(spi_dev, &t);
    if (ret == ESP_OK) {
        *data = rx[3];
    }
    return ret;
}

9) Write 16-bit Data to 16-bit Register Address

esp_err_t spi_write_reg16_data16(uint8_t cmd, uint16_t reg_addr, uint16_t data)
{
    uint8_t tx[5];
    tx[0] = cmd;
    tx[1] = (uint8_t)(reg_addr >> 8);
    tx[2] = (uint8_t)(reg_addr & 0xFF);
    tx[3] = (uint8_t)(data >> 8);
    tx[4] = (uint8_t)(data & 0xFF);

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;

    return spi_device_transmit(spi_dev, &t);
}

10) Read 16-bit Data from 16-bit Register Address

esp_err_t spi_read_reg16_data16(uint8_t cmd, uint16_t reg_addr, uint16_t *data)
{
    if (data == NULL) return ESP_ERR_INVALID_ARG;

    uint8_t tx[5] = {
        cmd,
        (uint8_t)(reg_addr >> 8),
        (uint8_t)(reg_addr & 0xFF),
        0x00,
        0x00
    };
    uint8_t rx[5] = { 0 };

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;
    t.rx_buffer = rx;

    esp_err_t ret = spi_device_transmit(spi_dev, &t);
    if (ret == ESP_OK) {
        *data = ((uint16_t)rx[3] << 8) | rx[4];
    }
    return ret;
}

11) Multi-Byte Read from 8-bit Register Address

esp_err_t spi_read_reg8_buffer(uint8_t cmd, uint8_t reg_addr, uint8_t *buf, size_t len)
{
    if (buf == NULL || len == 0) return ESP_ERR_INVALID_ARG;

    uint8_t tx[len + 2];
    uint8_t rx[len + 2];

    memset(tx, 0, sizeof(tx));
    memset(rx, 0, sizeof(rx));

    tx[0] = cmd;
    tx[1] = reg_addr;

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * sizeof(tx);
    t.tx_buffer = tx;
    t.rx_buffer = rx;

    esp_err_t ret = spi_device_transmit(spi_dev, &t);
    if (ret == ESP_OK) {
        memcpy(buf, &rx[2], len);
    }
    return ret;
}

12) Multi-Byte Write to 16-bit Register Address

esp_err_t spi_write_reg16_buffer(uint8_t cmd, uint16_t reg_addr, const uint8_t *buf, size_t len)
{
    if (buf == NULL || len == 0) return ESP_ERR_INVALID_ARG;

    uint8_t tx[len + 3];
    tx[0] = cmd;
    tx[1] = (uint8_t)(reg_addr >> 8);
    tx[2] = (uint8_t)(reg_addr & 0xFF);
    memcpy(&tx[3], buf, len);

    spi_transaction_t t;
    memset(&t, 0, sizeof(t));

    t.length = 8 * (len + 3);
    t.tx_buffer = tx;

    return spi_device_transmit(spi_dev, &t);
}

ESP-IDF Example Usage

void app_main(void)
{
    ESP_ERROR_CHECK(spi_master_init());

    uint8_t value8;
    uint16_t value16;
    uint8_t buf[4];

    spi_write_reg8_data8(0x02, 0x10, 0xAB);
    spi_read_reg8_data8(0x03, 0x10, &value8);

    spi_write_reg8_data16(0x02, 0x20, 0x1234);
    spi_read_reg8_data16(0x03, 0x20, &value16);

    spi_write_reg16_data8(0x02, 0x1234, 0x5A);
    spi_read_reg16_data8(0x03, 0x1234, &value8);

    spi_write_reg16_data16(0x02, 0x1234, 0xBEEF);
    spi_read_reg16_data16(0x03, 0x1234, &value16);

    spi_read_reg8_buffer(0x03, 0x30, buf, sizeof(buf));
}

🧩 STM32 HAL Examples

STM32 HAL provides simple blocking, interrupt, and DMA SPI APIs. For this tutorial, the examples use polling mode for clarity.

STM32 Setup Assumption

#include "stm32f1xx_hal.h"

extern SPI_HandleTypeDef hspi1;

1) Write Command Only

HAL_StatusTypeDef stm32_spi_write_command(uint8_t cmd)
{
    return HAL_SPI_Transmit(&hspi1, &cmd, 1, 100);
}

2) Full-Duplex Single-Byte Transfer

HAL_StatusTypeDef stm32_spi_transfer_byte(uint8_t tx_data, uint8_t *rx_data)
{
    return HAL_SPI_TransmitReceive(&hspi1, &tx_data, rx_data, 1, 100);
}

3) Write 8-bit Data to 8-bit Register Address

HAL_StatusTypeDef stm32_spi_write_reg8_data8(uint8_t cmd, uint8_t reg_addr, uint8_t data)
{
    uint8_t tx[3] = { cmd, reg_addr, data };
    return HAL_SPI_Transmit(&hspi1, tx, 3, 100);
}

4) Read 8-bit Data from 8-bit Register Address

HAL_StatusTypeDef stm32_spi_read_reg8_data8(uint8_t cmd, uint8_t reg_addr, uint8_t *data)
{
    uint8_t tx[3] = { cmd, reg_addr, 0x00 };
    uint8_t rx[3] = { 0 };

    HAL_StatusTypeDef ret = HAL_SPI_TransmitReceive(&hspi1, tx, rx, 3, 100);
    if (ret == HAL_OK && data != NULL) {
        *data = rx[2];
    }
    return ret;
}

5) Write 16-bit Data to 8-bit Register Address

HAL_StatusTypeDef stm32_spi_write_reg8_data16(uint8_t cmd, uint8_t reg_addr, uint16_t data)
{
    uint8_t tx[4];
    tx[0] = cmd;
    tx[1] = reg_addr;
    tx[2] = (uint8_t)(data >> 8);
    tx[3] = (uint8_t)(data & 0xFF);

    return HAL_SPI_Transmit(&hspi1, tx, 4, 100);
}

6) Read 16-bit Data from 8-bit Register Address

HAL_StatusTypeDef stm32_spi_read_reg8_data16(uint8_t cmd, uint8_t reg_addr, uint16_t *data)
{
    uint8_t tx[4] = { cmd, reg_addr, 0x00, 0x00 };
    uint8_t rx[4] = { 0 };

    HAL_StatusTypeDef ret = HAL_SPI_TransmitReceive(&hspi1, tx, rx, 4, 100);
    if (ret == HAL_OK && data != NULL) {
        *data = ((uint16_t)rx[2] << 8) | rx[3];
    }
    return ret;
}

7) Write 8-bit Data to 16-bit Register Address

HAL_StatusTypeDef stm32_spi_write_reg16_data8(uint8_t cmd, uint16_t reg_addr, uint8_t data)
{
    uint8_t tx[4];
    tx[0] = cmd;
    tx[1] = (uint8_t)(reg_addr >> 8);
    tx[2] = (uint8_t)(reg_addr & 0xFF);
    tx[3] = data;

    return HAL_SPI_Transmit(&hspi1, tx, 4, 100);
}

8) Read 8-bit Data from 16-bit Register Address

HAL_StatusTypeDef stm32_spi_read_reg16_data8(uint8_t cmd, uint16_t reg_addr, uint8_t *data)
{
    uint8_t tx[4] = {
        cmd,
        (uint8_t)(reg_addr >> 8),
        (uint8_t)(reg_addr & 0xFF),
        0x00
    };
    uint8_t rx[4] = { 0 };

    HAL_StatusTypeDef ret = HAL_SPI_TransmitReceive(&hspi1, tx, rx, 4, 100);
    if (ret == HAL_OK && data != NULL) {
        *data = rx[3];
    }
    return ret;
}

9) Write 16-bit Data to 16-bit Register Address

HAL_StatusTypeDef stm32_spi_write_reg16_data16(uint8_t cmd, uint16_t reg_addr, uint16_t data)
{
    uint8_t tx[5];
    tx[0] = cmd;
    tx[1] = (uint8_t)(reg_addr >> 8);
    tx[2] = (uint8_t)(reg_addr & 0xFF);
    tx[3] = (uint8_t)(data >> 8);
    tx[4] = (uint8_t)(data & 0xFF);

    return HAL_SPI_Transmit(&hspi1, tx, 5, 100);
}

10) Read 16-bit Data from 16-bit Register Address

HAL_StatusTypeDef stm32_spi_read_reg16_data16(uint8_t cmd, uint16_t reg_addr, uint16_t *data)
{
    uint8_t tx[5] = {
        cmd,
        (uint8_t)(reg_addr >> 8),
        (uint8_t)(reg_addr & 0xFF),
        0x00,
        0x00
    };
    uint8_t rx[5] = { 0 };

    HAL_StatusTypeDef ret = HAL_SPI_TransmitReceive(&hspi1, tx, rx, 5, 100);
    if (ret == HAL_OK && data != NULL) {
        *data = ((uint16_t)rx[3] << 8) | rx[4];
    }
    return ret;
}

11) Write Multiple Bytes to 8-bit Register Address

HAL_StatusTypeDef stm32_spi_write_reg8_buffer(uint8_t cmd, uint8_t reg_addr,
                                              uint8_t *buf, uint16_t len)
{
    uint8_t tx[len + 2];
    tx[0] = cmd;
    tx[1] = reg_addr;
    memcpy(&tx[2], buf, len);

    return HAL_SPI_Transmit(&hspi1, tx, len + 2, 100);
}

12) Read Multiple Bytes from 16-bit Register Address

HAL_StatusTypeDef stm32_spi_read_reg16_buffer(uint8_t cmd, uint16_t reg_addr,
                                              uint8_t *buf, uint16_t len)
{
    uint8_t tx[len + 3];
    uint8_t rx[len + 3];

    memset(tx, 0, sizeof(tx));
    memset(rx, 0, sizeof(rx));

    tx[0] = cmd;
    tx[1] = (uint8_t)(reg_addr >> 8);
    tx[2] = (uint8_t)(reg_addr & 0xFF);

    HAL_StatusTypeDef ret = HAL_SPI_TransmitReceive(&hspi1, tx, rx, len + 3, 100);
    if (ret == HAL_OK && buf != NULL) {
        memcpy(buf, &rx[3], len);
    }
    return ret;
}

STM32 Example Usage

void example_spi_transactions(void)
{
    uint8_t value8;
    uint16_t value16;
    uint8_t buf[4];

    stm32_spi_write_reg8_data8(0x02, 0x10, 0xAA);
    stm32_spi_read_reg8_data8(0x03, 0x10, &value8);

    stm32_spi_write_reg8_data16(0x02, 0x20, 0x1122);
    stm32_spi_read_reg8_data16(0x03, 0x20, &value16);

    stm32_spi_write_reg16_data8(0x02, 0x1234, 0x77);
    stm32_spi_read_reg16_data8(0x03, 0x1234, &value8);

    stm32_spi_write_reg16_data16(0x02, 0x1234, 0x3344);
    stm32_spi_read_reg16_data16(0x03, 0x1234, &value16);

    stm32_spi_read_reg16_buffer(0x03, 0x2000, buf, sizeof(buf));
}

⚡ Important Notes

SPI usually needs one CS line per slave
SPI is generally faster than I2C
No pull-up resistors required like I2C
Master always generates the clock
Some devices require dummy clocks / dummy bytes before read data becomes valid
Some devices support MSB-first or LSB-first
Always match:
- SPI mode
- clock speed
- bit order
- frame format

🛠️ Troubleshooting

No response -> Check CS wiring and SPI mode
Wrong data -> Check CPOL / CPHA settings
All zeros / all 0xFF -> Check MISO connection and dummy bytes
Data shifted incorrectly -> Check bit order and clock edge
Works sometimes -> Reduce SPI clock speed and verify signal quality

🔬 How MCU Handles 8-bit and 16-bit Address/Data Internally

8-bit Register Address

When a device uses an 8-bit register address, the MCU typically sends:

CS LOW
COMMAND
REG_ADDR (8-bit)
DATA...
CS HIGH

16-bit Register Address

When a device uses a 16-bit register or memory address, the MCU typically sends:

CS LOW
COMMAND
REG_ADDR_HIGH
REG_ADDR_LOW
DATA...
CS HIGH

8-bit Data

For 8-bit data, only one byte is transferred:

DATA = 0x5A

16-bit Data

For 16-bit data, two bytes are transferred, usually MSB first:

DATA_HIGH = 0x12
DATA_LOW  = 0x34

Combined value:

0x1234

Important Rule

Register/address width and data width are different things.

Examples:

sensor may use 8-bit register address and 8-bit data
Flash memory may use 16-bit or 24-bit address and 8-bit data
ADC may use 8-bit register address and return 16-bit data
display controller may use command + data stream without a normal register map

So always check the datasheet for:

command format
register / memory address size
data size
byte order
dummy cycles
SPI mode

📚 Summary

SPI uses clocked serial communication
Usually 4 wires: SCLK, MOSI, MISO, CS
Full-duplex transfer is possible
Faster than I2C in many applications
Each slave usually needs its own CS line
Frame format depends on the device datasheet

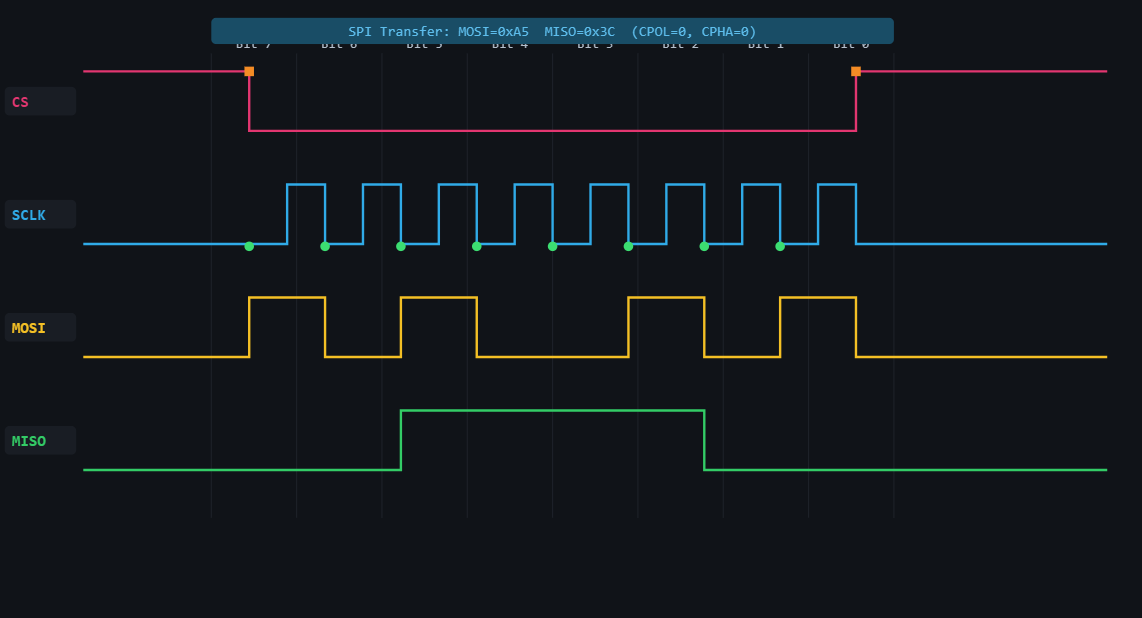

🚀 Bonus: Logic Analyzer View

Logic Analyzer

📌 References

ESP-IDF SPI Master Driver: https://docs.espressif.com/projects/esp-idf/en/stable/esp32/api-reference/peripherals/spi_master.html
STM32 HAL SPI How To Use: https://dev.st.com/stm32cube-docs/stm32c5xx-hal-drivers/2.0.0/en/docs/drivers/hal_drivers/spi/hal_spi_how_to_use.html
